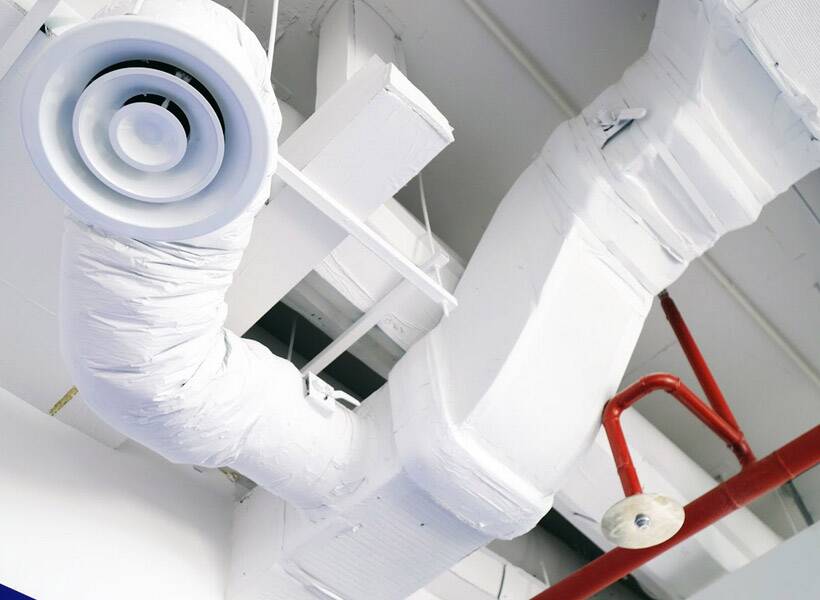

Painting exposed HVAC ducts is a common way to achieve a clean, finished look in commercial, industrial, and even modern residential spaces. However, the process must be executed carefully. Improper preparation, incompatible coatings, or paint buildup inside the ductwork can compromise airflow, impact system efficiency, or introduce contaminants into the air stream. The goal is to improve aesthetics without altering system performance. The following guidance outlines best practices to ensure that your painting project is both safe and compliant with HVAC standards.
Limit All Painting to Exterior Surfaces Only
The most important rule in duct painting is to avoid introducing paint into the interior of the duct system. Any coating inside the ducts can narrow the passageway, reduce the smoothness of the airflow surface, and increase resistance. Additionally, drying paint may emit VOCs that can be carried through the system. Therefore, all coating work must remain strictly on the exterior of the ducts.
When working in tight ceiling plenums or overhead mechanical rooms, mask all joints, seams, and open ends before painting. Any areas where air passes should be fully sealed with plastic or wrap. Once painting is complete and fully dry, remove protective coverings and verify that the duct connections are still airtight.
Clean and Prepare the Duct Surface Properly
Paint adhesion to metal ductwork requires proper surface preparation. For galvanized ducts, residual oils and manufacturing coatings must be removed before applying primers or topcoats. Use a degreaser or mild detergent to clean the surfaces, followed by a rinse and full drying. Light scuffing with fine-grit abrasive pads can also help promote adhesion, especially on smooth sheet metal.
Rust or corrosion should be addressed before painting. Remove loose rust with a wire brush or abrasive, and apply a rust-inhibiting primer suited for metal HVAC surfaces. Skipping this step can allow corrosion to continue beneath the paint, eventually weakening the duct.
Choose Paints Compatible With HVAC Conditions
HVAC ducts often experience temperature fluctuations, vibration, and humidity changes. Select coatings designed for metal surfaces and rated for thermal expansion. Acrylic latex and water-based industrial coatings are common choices due to their flexibility and low VOC emissions. Avoid heavy, thick coatings or textured paints, which may add unnecessary weight or trap dust.
In commercial spaces where ducts are part of the architectural design, many contractors use matte or low-sheen finishes to hide imperfections. For harsh environments, consider enamel coatings or specialized duct paints designed for mechanical systems.
Use Thin, Even Coats to Avoid Excess Buildup
Thick coats of paint can interfere with duct supports, hangers, or insulation jackets. Heavy buildup may also flake over time. Apply thin, even coats using a sprayer or roller, allowing each layer to dry completely before adding the next. Spraying produces the smoothest finish and reduces the likelihood of runs or drips that could migrate toward seams.
If ducts include flexible connectors or vibration isolators, avoid painting these components, as coatings can stiffen them and lead to premature failure.
Protect Insulation and Code-Required Labels
Many duct systems include exterior insulation wrap, liner edges, or code labels that must remain visible. Labels identify fire ratings, duct types, and installation information needed for inspections. Mask these areas before painting to avoid compliance issues.
If the ducts have fire-rated assemblies, verify whether the coating is approved for use on rated materials. Some paints can void a fire rating or affect thermal performance.
Verify Airflow After Completion
Once the painting project is complete, it is good practice to observe the system during operation. Listen for unusual noise, confirm that no overspray entered the duct, and ensure that airflow from registers remains consistent. In critical commercial spaces, an HVAC technician can conduct a quick static pressure check to verify that nothing has been unintentionally altered.
Painting HVAC ducts is a straightforward project when performed correctly. By limiting coatings to exterior surfaces, preparing and protecting the system properly, and using compatible products, you can achieve a polished appearance without compromising airflow or efficiency.
