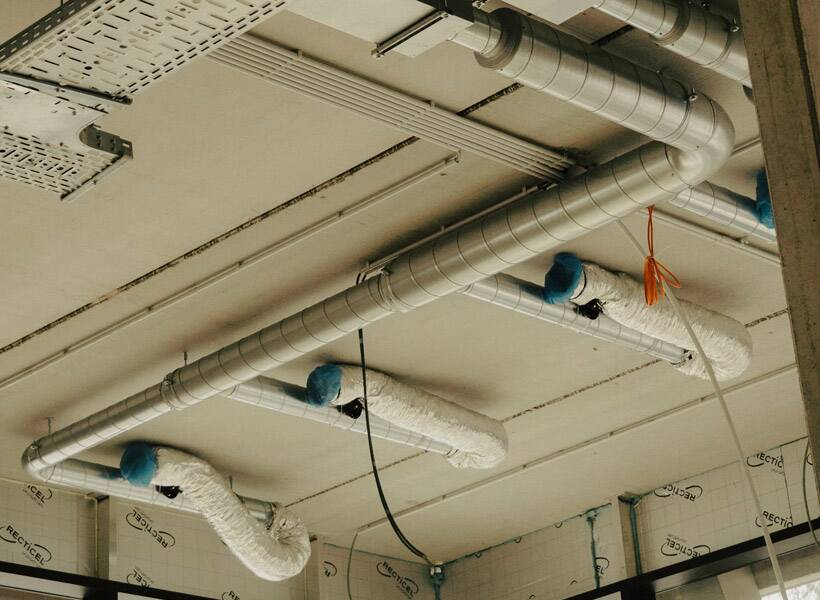

Painting ceilings that contain exposed pipes, conduits, ductwork, and structural elements requires a methodical approach that balances aesthetics, durability, and compliance with mechanical and electrical standards. Many commercial facilities, including warehouses, retail spaces, restaurants, and converted office environments, opt for an “open-ceiling” look because it creates visual height and reduces the need for drop-ceiling systems. However, achieving a clean, uniform finish over mixed materials demands proper preparation, coating selection, and application techniques.
Assess the Existing Surfaces
The first step is conducting a complete inspection of all exposed elements. Ceilings in older or active commercial buildings often include layers of dust, operational residue, corrosion, and multiple substrate types. Exposed elements typically include steel water pipes, copper lines, PVC conduits, EMT electrical conduit, fire sprinkler mains, steel joists, and galvanized HVAC components. Each substrate responds differently to paint, so identifying these materials up front allows the contractor to select the correct primers and topcoats. It is also essential to confirm whether any electrical conduits or sprinkler components can be coated. For example, painting fire sprinkler heads is prohibited by NFPA standards, and electrical panels or junction boxes with labeling should not be oversprayed.
Surface Preparation Requirements
Preparation is often the most labor-intensive part of painting open ceilings. Dust, cobwebs, and residue on horizontal surfaces must be removed using blow-down equipment, vacuums, and hand cleaning. Oily or greasy contaminants on plumbing or mechanical lines require degreasing agents and rinse steps. Rusted or corroded steel components must be wire-brushed or mechanically abraded before priming with a rust-inhibitive coating. Galvanized metal, often present on conduit straps and cable trays, needs specialized primers to ensure adhesion. Proper masking is also critical: sprinkler heads, sensors, smoke detectors, and lighting fixtures must be covered to comply with safety guidelines.
Selecting the Right Coatings
Coating selection plays a major role in performance and appearance. Most commercial ceilings with exposed pipes are finished with acrylic, alkyd, or epoxy-based paints depending on the environment. Waterborne acrylics are typically preferred for occupied spaces because they produce fewer odors and dry quickly. In industrial settings, epoxy primers and urethane topcoats may be used for higher durability. When different materials are present side-by-side, such as galvanized conduit next to steel beams, multi-surface bonding primers ensure uniform adhesion and finish. Fire sprinkler piping often requires coatings that can withstand higher temperatures without degrading.
Application Considerations
Spray application is the industry standard for open ceilings because it reaches the back sides of pipes and the underside of structural members while producing an even, monolithic finish. Airless sprayers are the most common equipment, though contractors may switch to HVLP sprayers or brushes for touch-ups in tight areas. Achieving uniform coverage on round or irregular shapes requires controlled spray angles and multiple passes. Contractors must also monitor for overspray drift, especially near finished walls, machinery, or inventory. Proper airflow management and temporary enclosures help contain paint mist during large-scale projects.
Safety and Compliance Factors
Working at height is inherent in open-ceiling painting. Personnel should use certified lifts, fall-protection systems, and lockout-tagout procedures when working near electrical or mechanical systems. It is also important to coordinate with facility management to schedule work during off-hours to minimize disruption. All coatings should meet VOC regulations applicable to the region. If the building has active fire-suppression systems, the painting schedule should include system isolation or protective coverings to avoid accidental discharge or code violations.
Achieving a Professional Result
A well-executed project yields a clean, unified ceiling plane that masks inconsistencies across multiple building systems. By choosing the correct coatings, preparing the substrates thoroughly, and applying paint with professional spray techniques, contractors can transform a cluttered ceiling into a cohesive architectural element. For businesses seeking a modern, industrial aesthetic, painting exposed pipes and conduits is a cost-effective strategy that enhances both appearance and long-term durability.
